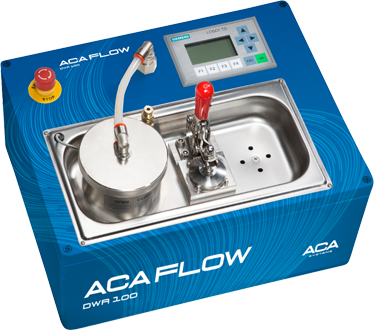

ACA Flow

Process conditions in the laboratory testing
makes the value-added in real

Fast and easy measurement

Substrate (base paper, nonwoven, absorbing film) is weighted, and then the sample is placed together with a filter on the lid of the device. The lid is closed. In order to simulate the process conditions, pressure (1 – 2bar) and measurement time (usually 3 – 6 s) can be selected on the touch screen.

After the controlled coating flow the substrate is measured again and g/m2 is calculated as a flow rate into the base.

Benefits of ACA Flow

  1. Possibility to measure characteristics of coating dispersions and water based solutions on flow properties
  2. Possibility to measure the influence of different base substrates on the flow characteristics
  3. Due to the dynamic flow the instrumen has an excellent correlation to real coating processes
  4. Fast and easy measurement

Product Info

  • Application data
    • Pressure range 0.5 – 2.0 bar
    • Measuring time 200 ms – 60s
    • Filter type 0.4 qm HTTP
    • Diameter of measuring filter 47 mm
    • Diameter of measuring area 41 mm
    • Sample amount 300 ml or more
  • Connections
    • Pneumatic air
    • Water 1 – 4 bar
    • Power 110-240 VAC 50-60 Hz
  • Dimensions ad specifications
    • Width 330 mm
    • Height 280 mm
    • Lenght 530 mm
    • Weight 12 kg
    • Operational temperature Room temperature
  • ACA Services
    • Maintenances
    • Spare parts

Contact us:

Proven results & happy customers

ACA Flow helped us to determine the critical surface starch solids in our liner production

ACA Flow shows us immediately if there is an unwanted change in our base paper or coating. Excellent troubleshooting and quality control tool
